Specifications
Dimensions
Mounting
Hole pitch
Material
Color
10 mm
39 mm x 39 mm x 12 mm
4 hole fixing
29 mm x 29 mm
Composite
White

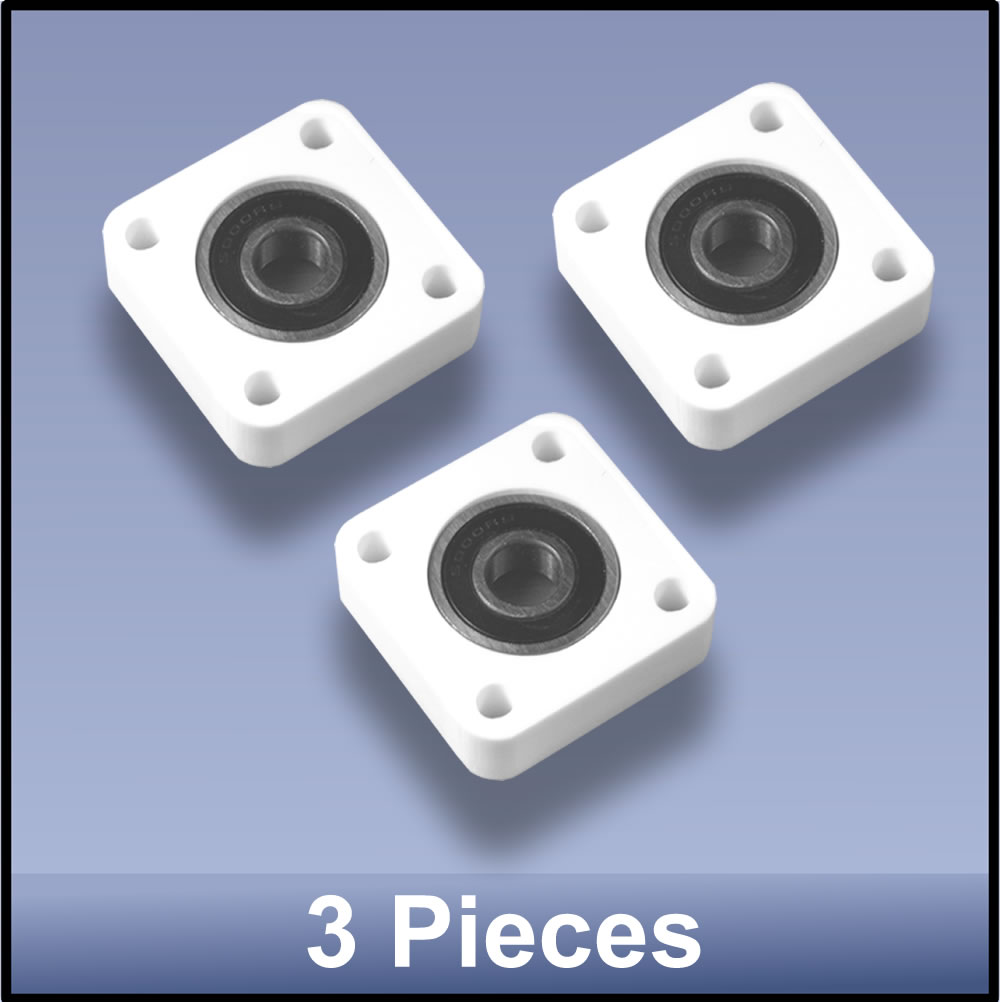

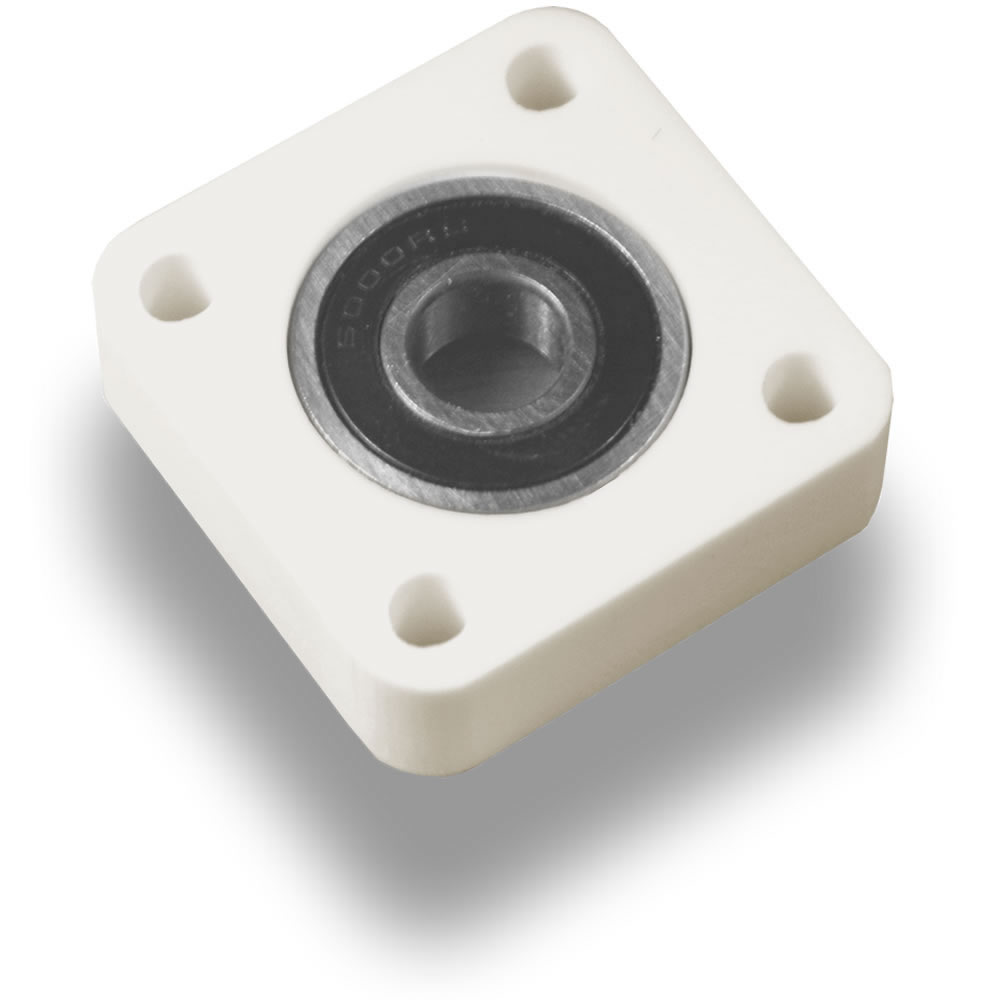

This compact flange bearing provides a convenient bearing in a housing and has an 10 mm bore diameter.
The compact size of this bearing is ideal for applications where space is limited. The housing is made of a sturdy high density composite material and is fitted with an 10 mm bore bearing.
This flange bearing can be used in numerous applications but is especially useful in combination with our CNC 10 mm stainless steel lead screws and nut assemblies. The lead screws can easily be attached to the flange bearing with standard M10 nuts. The flange bearing is provided with a 4 hole fixing for M5 bolts
This item is shipped by registered international air mail
