Specifications
Dimensions
Mounting
Hole pitch
Material
Color
8 mm
36 mm x 36 mm x 12 mm
4 hole fixing
25 mm x 25 mm
Composite
White

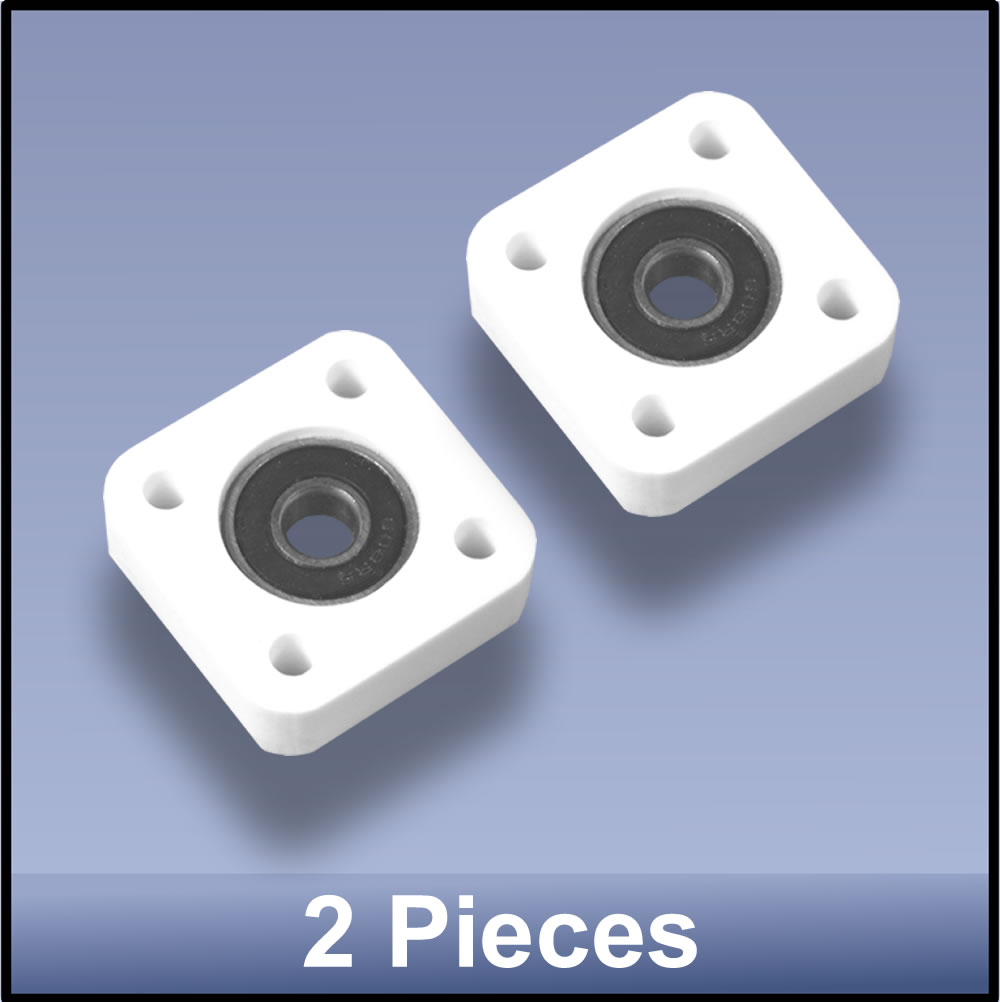

This compact flange bearing provides a convenient bearing in a housing and has an 8 mm bore diameter.
The compact size of this bearing is ideal for applications where space is limited. The housing is made of a sturdy high density composite material and is fitted with an 8 mm bore bearing.
This flange bearing can be used in numerous applications but is especially useful in combination with our CNC 8 mm stainless steel lead screws and nut assemblies. The lead screws can easily be attached to the flange bearing with standard M8 nuts. The flange bearing is provided with a 4 hole fixing for M5 bolts
This item is shipped by registered international air mail
